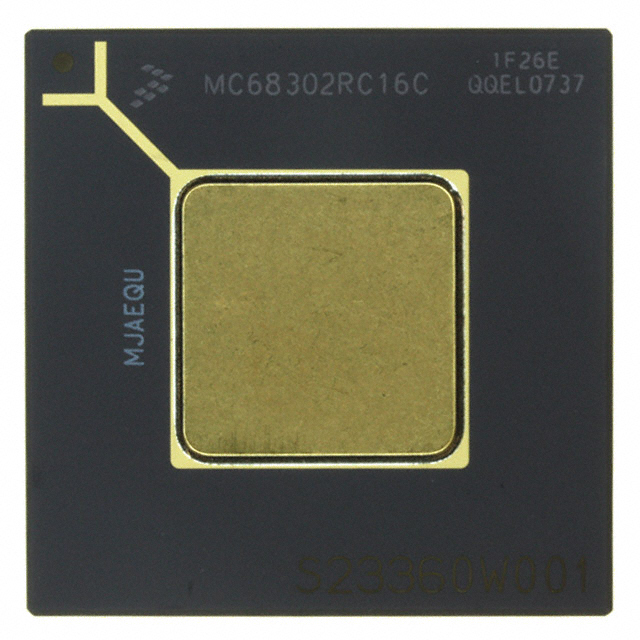

MC68302RC20C
IC MPU M683XX 20MHZ 132PGA
| Part Description | M68000 Microprocessor IC M683xx 1 Core, 8/16-Bit 20MHz 132-PGA (34.5x34.5) |
|---|
| Product Category | Microprocessors |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Obsolete |
| Leadtime | N/A |
| Datasheet | |
| Quantity | 161 Available (as of March 6, 2026) |
Specifications
| Part Package | 132-BPGA Exposed Pad |
|---|---|
| Device Package | 132-PGA (34.5×34.5) |
| Mounting Method | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Core Processor: | M68000 |
| Number of Cores/Bus Width: | 1 Core, 8/16-Bit |
| Speed: | 20MHz |
| Co-Processors/DSP: | Communications; RISC CPM |
| RAM Controllers: | DRAM |
| Graphics Acceleration: | No |
| Voltage – I/O: | 5.0V |
| Additional Interfaces: | GCI, IDL, ISDN, NMSI, PCM, SCPI |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
