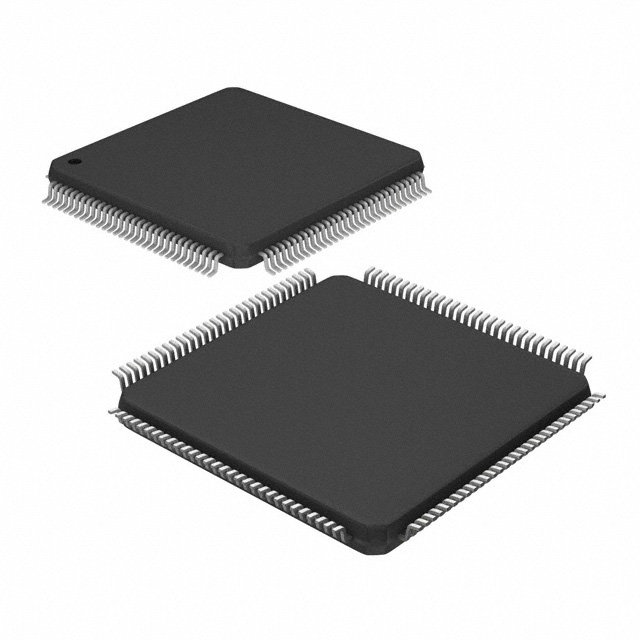

R5F563TEDDFA#V0
IC MCU 32BIT 512KB FLASH 120LQFP
| Part Description | RX RX600 Microcontroller IC 32-Bit Single-Core 100MHz 512KB (512K x 8) FLASH 120-LQFP (16x16) |
|---|
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Not For New Designs |
| Leadtime | 18 Weeks |
| Datasheet | |
| Quantity | 1570 Available (as of January 18, 2026) |
Specifications
| Part Package | 120-LQFP |
|---|---|
| Device Package | 120-LQFP (16×16) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | RX |
| Core Size: | 32-Bit Single-Core |
| Speed: | 100MHz |
| Connectivity: | EBI/EMI, I2C, LINbus, SCI, SPI |
| Peripherals: | DMA, LVD, POR, PWM, WDT |
| Number of I/O: | 72 |
| Program Memory Size: | 512KB (512K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 32K x 8 |
| RAM Size: | 48K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 12x10b, 8x12b; D/A 2x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
