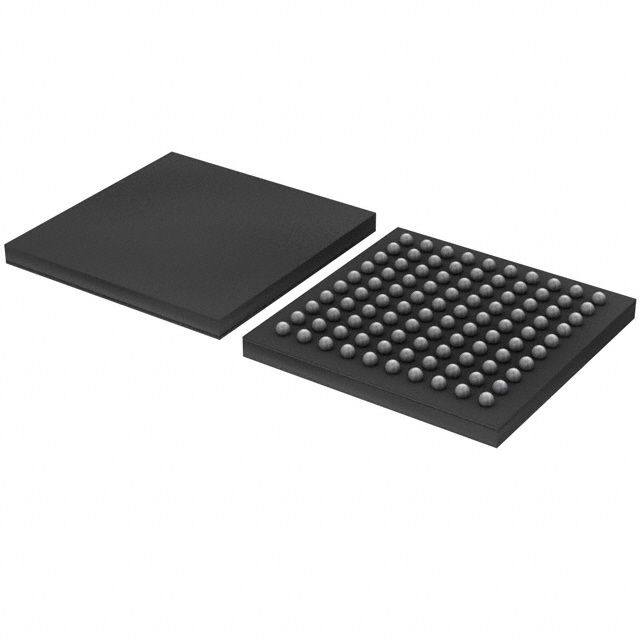

LPC1817JET100E
IC MCU 32BIT 1MB FLASH 100TFBGA
| Part Description | ARM® Cortex®-M3 LPC18xx Microcontroller IC 32-Bit Single-Core 180MHz 1MB (1M x 8) FLASH 100-TFBGA (9x9) |
|---|
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Leadtime | 13 Weeks |
| Datasheet | |
| Quantity | 97 Available (as of January 15, 2026) |
Specifications
| Part Package | 100-TFBGA |
|---|---|
| Device Package | 100-TFBGA (9×9) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor: | ARM® Cortex®-M3 |
| Core Size: | 32-Bit Single-Core |
| Speed: | 180MHz |
| Connectivity: | CANbus, EBI/EMI, I2C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART |
| Peripherals: | Brown-out Detect/Reset, DMA, I2S, POR, WDT |
| Number of I/O: | 49 |
| Program Memory Size: | 1MB (1M x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 16K x 8 |
| RAM Size: | 136K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.2V ~ 3.6V |
| Data Converters: | A/D 4x10b; D/A 1x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
