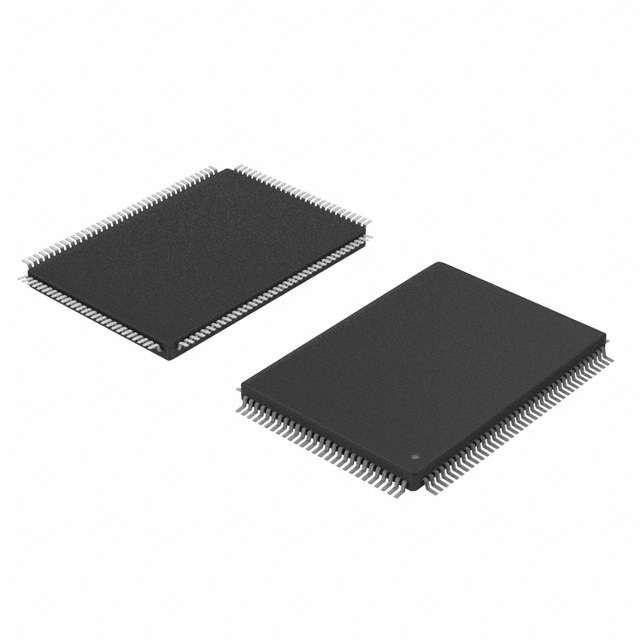

DSP56854FGE
IC MCU 16BIT 32KB SRAM 128LQFP
| Part Description | 56800E 568xx Microcontroller IC 16-Bit 120MHz 32KB (16K x 16) SRAM 128-LQFP (14x20) |
|---|
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Obsolete |
| Leadtime | N/A |
| Quantity | 1817 Available (as of January 30, 2026) |
Specifications
| Part Package | 128-LQFP |
|---|---|
| Device Package | 128-LQFP (14×20) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | 56800E |
| Core Size: | 16-Bit |
| Speed: | 120MHz |
| Connectivity: | EBI/EMI, SCI, SPI, SSI |
| Peripherals: | DMA, POR, WDT |
| Number of I/O: | 41 |
| Program Memory Size: | 32KB (16K x 16) |
| Program Memory Type: | SRAM |
| RAM Size: | 16K x 16 |
| Voltage – Supply (Vcc/Vdd): | 1.62V ~ 1.98V |
| Oscillator Type: | External |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
