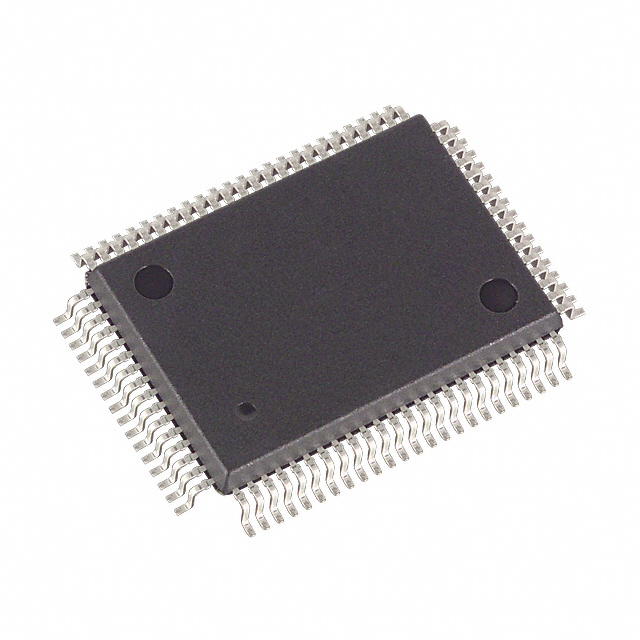

DS5003FPM-16+
IC MCU 8BIT EXTRNL NVSRAM 80QFP
| Part Description | 8051 DS500x Microcontroller IC 8-Bit 16MHz External NVSRAM 80-MQFP (14x20) |
|---|
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Leadtime | 22 Weeks |
| Datasheet | |
| Quantity | 83 Available (as of February 2, 2026) |
Specifications
| Part Package | 80-BQFP |
|---|---|
| Device Package | 80-MQFP (14×20) |
| Mounting Method | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Core Processor: | 8051 |
| Core Size: | 8-Bit |
| Speed: | 16MHz |
| Connectivity: | EBI/EMI, SIO, UART/USART |
| Peripherals: | Power-Fail Reset, WDT |
| Number of I/O: | 32 |
| Program Memory Size: | External |
| Program Memory Type: | NVSRAM |
| Voltage – Supply (Vcc/Vdd): | 4V ~ 5.5V |
| Oscillator Type: | External |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 2A (4 Weeks) |
| ECCN | 5A002A1 |
| HTS Code | 8542.31.0001 |
